สินค้า

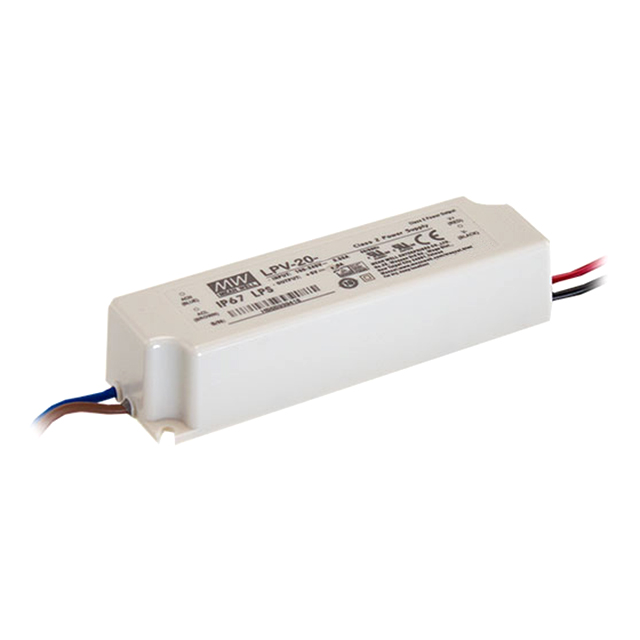

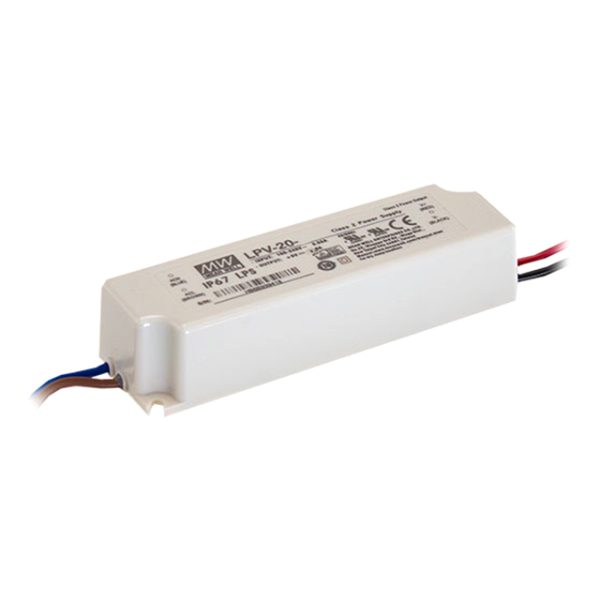

Power Supply LPV 20-150W, 12V/24V 0.84-10A 90-264VAC 50/60Hz
฿750.00 – ฿2,700.00
ดาวน์โหลด
Model : KNF2835120308024676W / KNF28351203080246712W
Rate Power : 20 – 150W
AC input voltage range : 90-264VAC 50/60Hz
Output DC voltage : 12Vdc / 24Vdc
INDUSTRIAL LIGHT: SERIES LPV
MODEL : LPV-20-24 / LPV-35-24 / LPV-60-24 / LPV-100-24 / LPV-150-24
Specification
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rate Power : | 20W /35W / 60W / 100W / 150W | Overload Protection Range: | 110% ~ 150% |
| Output Rated Current : | 0.84A / 1.5A / 2.5A / 4.2A / 6.3A | 115% ~ 135% Rated output voltage | |
| Output DC voltage : | 24V | ||
| AC input voltage range : | 90~264V / 90~264V : 120-370CDV : 180~305V | Overload Protection Type: | Hiccup mode , auto-recovery |
| Working Temperature : | -30 to + 70°C / -30 to + 65°C / | ||
| AC inruch current (max) : | Cold start, 55A at 230V | -25 to + 70°C / -25 to + 65°C / | |
| Cold start, 60A at 230V | |||
| Cold start, 70A at 230V | Dimension : | 118x35x26mm., / 148x40x30 mm. | |
| 162.5×42.5×32 mm., / 190x52x37 mm. | |||
| 191x63x37.5 mm. |
| ขนาด | ไม่ระบุ |
|---|---|
| Power: | 100W, 150W, 20W, 35W, 60W |
| Output: | 12Vdc, 24Vdc |
